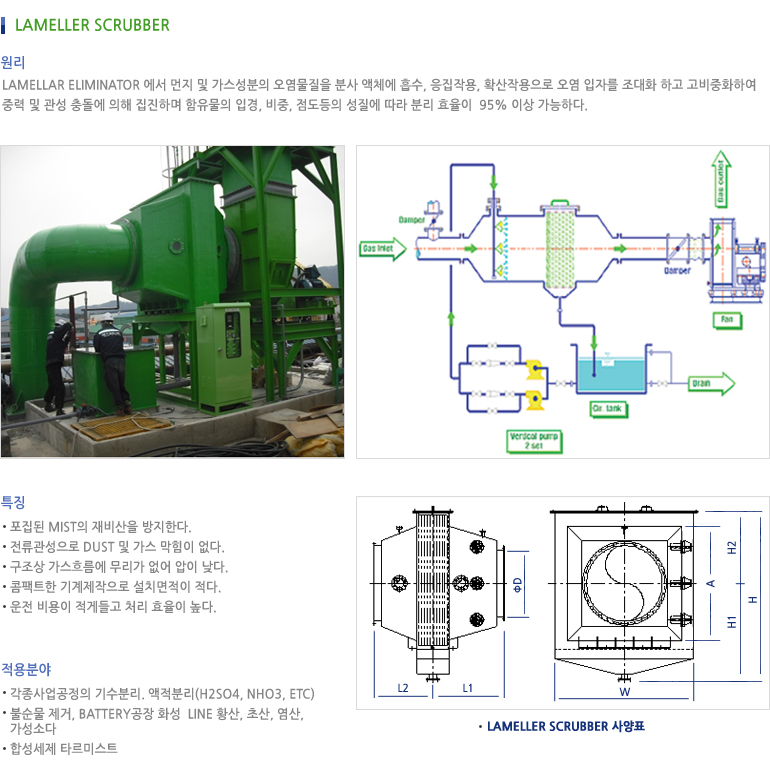

MODEL Capacity dimension(mm) DIMESION
(㎥/min) ΦD A L L1 L2 W H H1 H2
SCT-LS-4V 40 300 380 1430 700 660 500 800 550 250
SCT-LS-5V 50 300 430 1470 800 670 550 900 600 300
SCT-LS-6V 60 350 480 1510 830 680 600 1000 700 300
SCT-LS-8V 80 400 580 1550 860 690 700 1050 700 350
SCT-LS-10V 100 450 630 1580 880 700 750 1100 750 350
SCT-LS-12V 120 500 380 1610 900 710 800 1150 750 400
SCT-LS-16V 160 600 780 1650 920 730 900 1250 800 450
SCT-LS-21V 210 650 880 1700 950 750 1000 1350 850 500
SCT-LS-27V 270 700 980 1760 980 780 1100 1450 900 550
SCT-LS-33V 330 750 1080 1800 1000 800 1200 1550 950 600
SCT-LS-33V 330 750 1080 1800 1000 800 1200 1550 950 600
SCT-LS-40V 400 800 1180 1900 1050 850 1300 1700 1000 700
SCT-LS-48V 480 850 1280 2000 1100 900 1400 1800 1050 750
SCT-LS-56V 560 900 1380 2050 1130 920 1500 1900 1100 800
SCT-LS-65V 650 700 1480 2080 1150 930 1600 2000 1150 750
SCT-LS-75V 750 1100 1580 2110 1170 940 1700 2100 1200 900
SCT-LS-85V 850 1100 1780 2140 1190 950 1900 2200 1250 950
SCT-LS-100V 1000 1200 1880 2170 1210 960 2000 2300 1300 1000
SCT-LS-110V 1100 1300 1980 2280 1230 1050 2100 2450 1400 1050
SCT-LS-120V 1200 1400 2080 2310 1260 1070 2200 2600 1500 1100
SCT-LS-140V 1400 1500 2180 2400 1300 1100 2300 2750 1600 1150
